Blast Doors and Bullet Proof Garage Doors |
| Rusch Doors offers Custom Blast Doors and Bullet Proof doors for many different applications. We offer Industrial and Commercial doors with blast and bullet resistant capabilities. We offer these doors in sliding doors, swing type doors, and sectional garage door type applications. These doors are available in many different levels of security including NIJ and UL752 capabilities. We offer a TURNKEY product to give you the highest quality product available. Our doors are designed to meet your specific needs. Our company will complete the drawings, submittals, manufacturing, delivery, and installation. From start to finish, quality is our goal. |
| Our products are widely used on military bases, banks, museums, corporate parking garages, Government Buildings and any place where ballistic and attack resistant products are required.
We design and build quality products that protect lives. Our Bullet, Blast and Forced Entry Resistant products are available worldwide, please call our professional staff at Bullet Proof Doorz to discuss your security door needs. |
   |

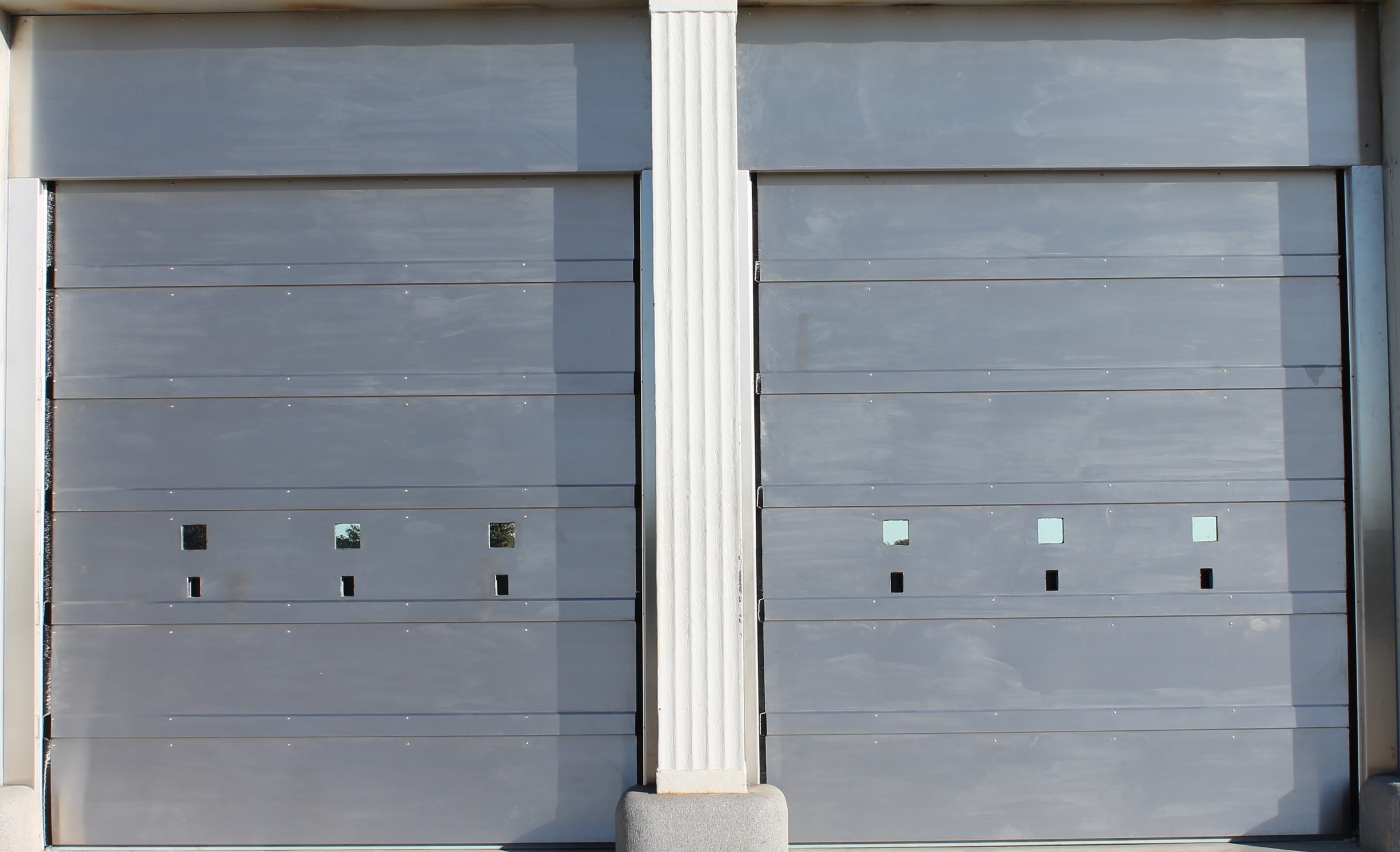

| Custom bullet Proof doors with gun ports and bullet proof glass. These doors also have our stainless overlays. |
 |

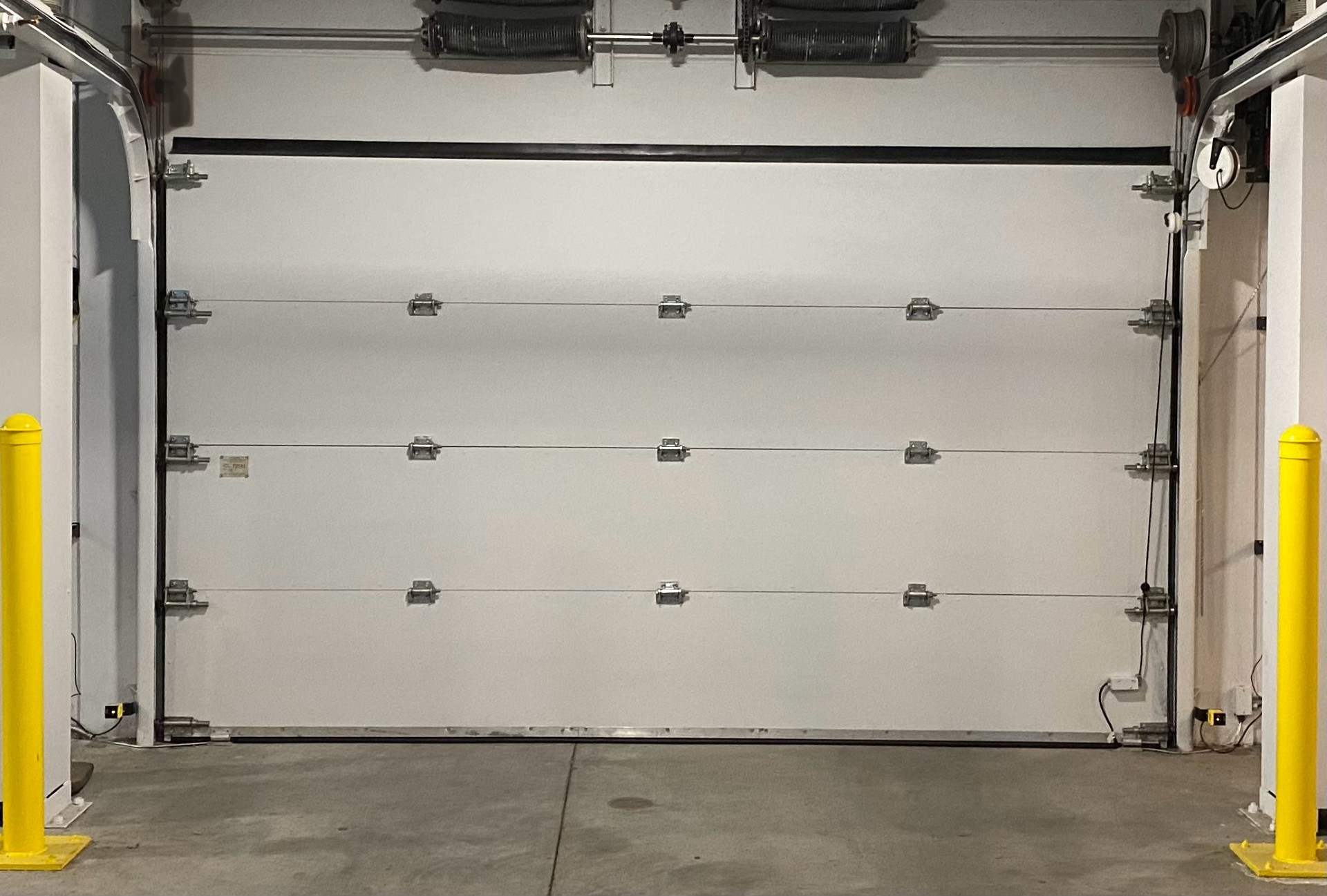

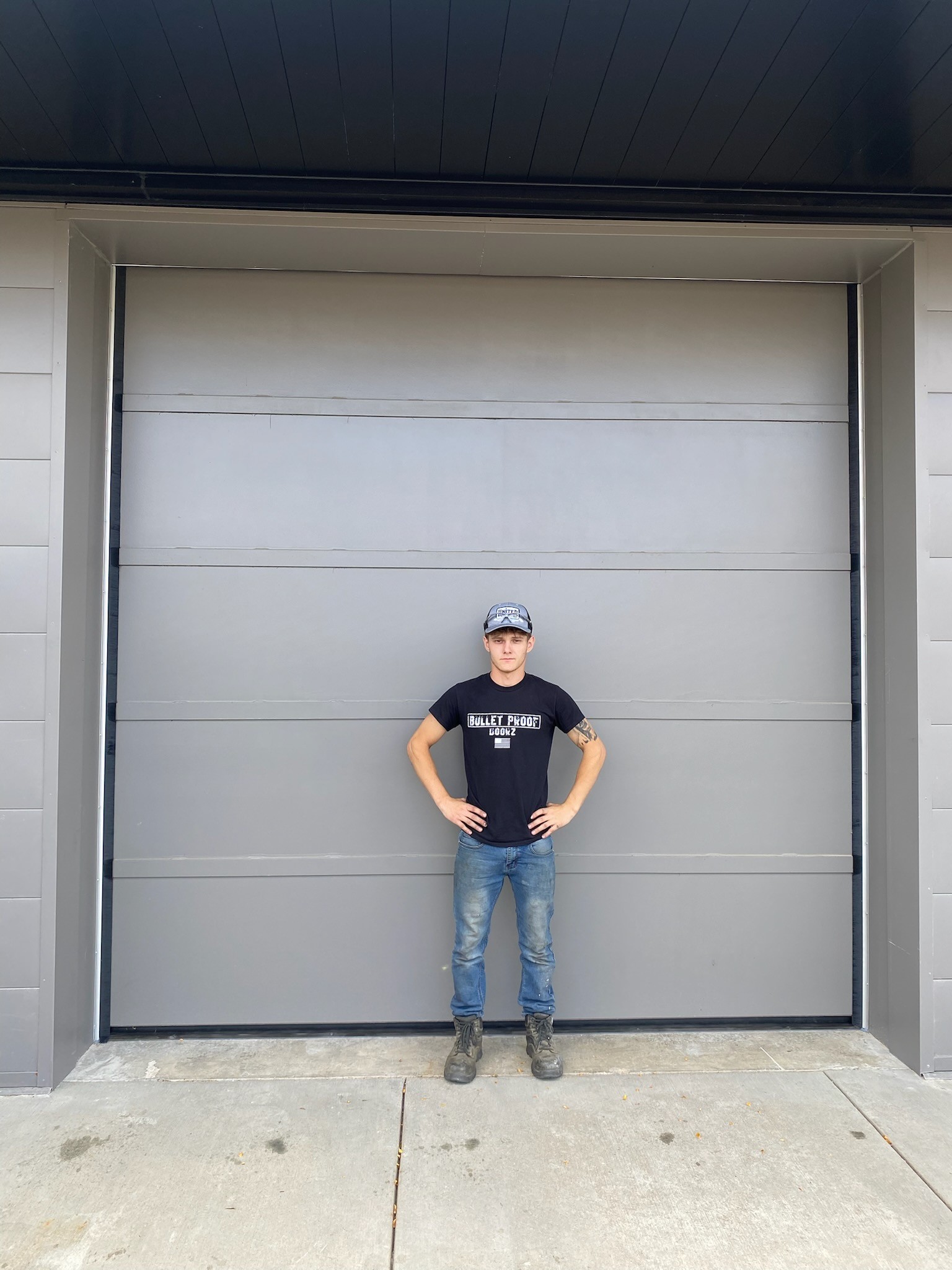

| U.l. 752 and NIJ Rated High security bullet proof garge door with solid panels and painted to customers specifications. |
|

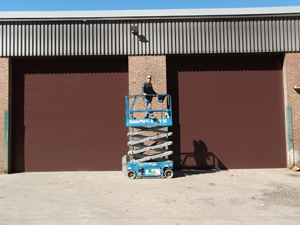

| Blast Doors and Bullet Resistant Garage Doors are all custom made to cover any door application. Blast Doors and Bullet Resistant garage doors are motorized, but can be manually operated by hand chain for emergency use. Bullet resistant garagedoors can be sliding, swing type, or sectional garage door type applications. These garage door applications are available in custom exterior appearances. |
 |

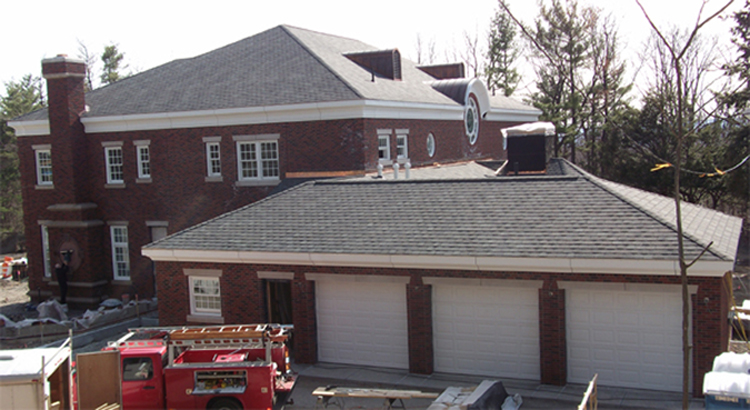

| Our bullet resistant and blast garage doors fit extremely well in parking garages for high level personnel drop off |
 |

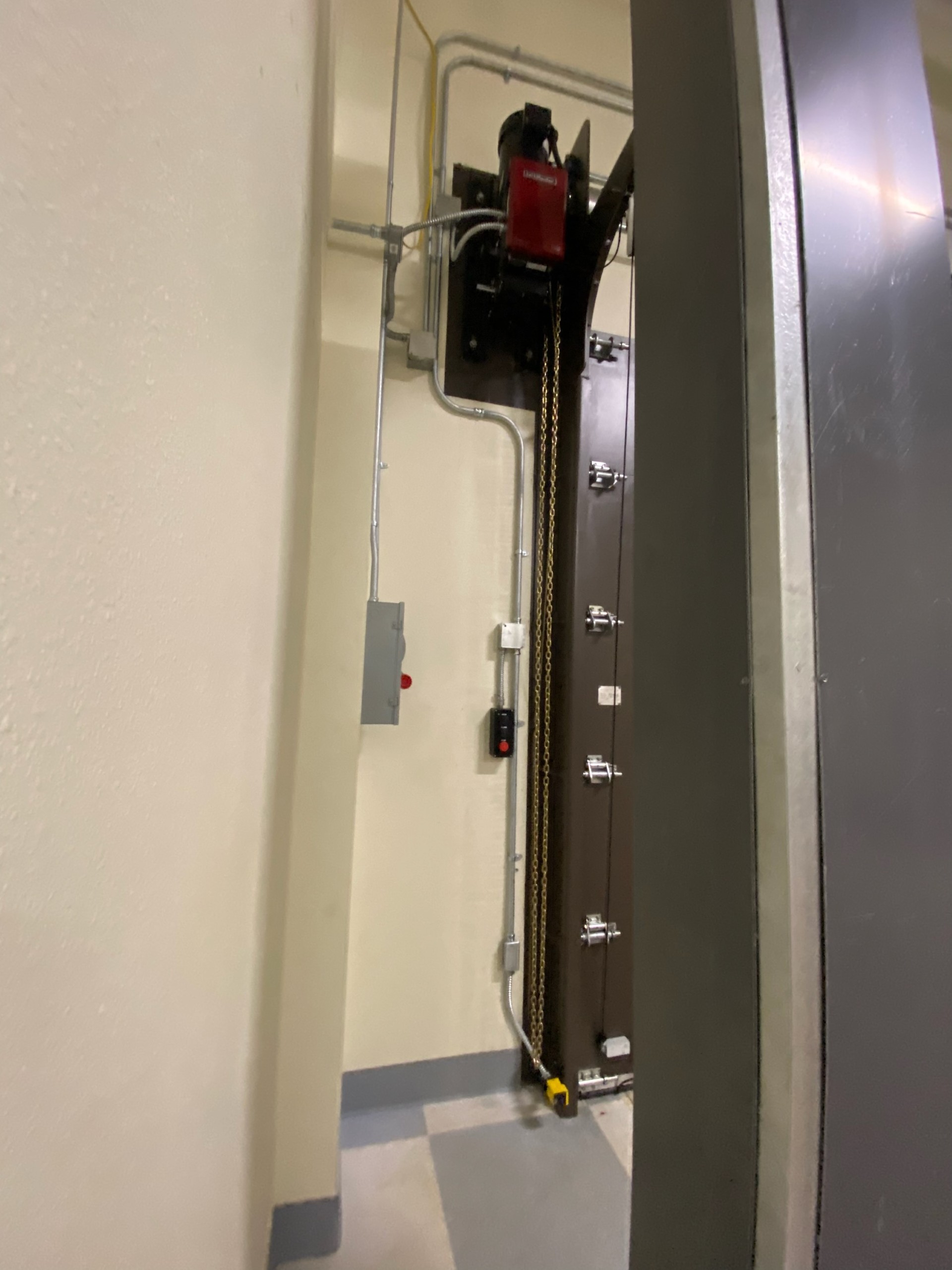

| Motor configuration on Blast and bullet resistant garage door. Blast Doors are all custom made to cover any door application. Blast Doors can be motorized or manually operated. Bullet resistant garage doors can be sliding, swing type, or sectional garage door type applications. These garage door applications are available in custom exterior appearances. |
 |
| DOOR SPECIFICATIONS:
PANELS Exterior layer will be smooth with overlapping seams for optimal security and protection. Panels are primed with a zinc primer and require field painting once installed. Thickness varies around 3.5 inches depending on ballistic and blast requirements. Panels will meet the required ballistic or blast specifications.INSULATION Panels to be injected with polyurethane R-19.5 or greater.TRACKS / COUNTERBALANCE Tracks will run on reinforced track systems engineered to support door weight. Door tracks will be welded to steel embedments or fastened to concrete. Track Configuration Option 1 uses a rollback track system that requires door height plus 40 inches of headroom. This system is equipped with 20,000-cycle spring life components. Track Configuration Option 2 uses a vertical lift track system that requires door height times two plus 24 inches of headroom. This door goes straight up and uses a counterweight system with high-performance cycle life components.HARDWARE Roller wheels are custom manufactured and equipped with American made ceramic sealed ball bearings for long life and optimal performance. Solid hardened steel roller shafts. Steel hinges designed with American made brass bushings with a grease fitting located in the center to allow for serviceability. All hardware components treated with ASTM B633 Zinc Plating.FINISH Panels will be primed only and will be the customer's responsibility for finishing color after assembly is complete. Panels will be primed with a zinc primer. Structural steel braces will be primed with a zinc primer. Hardware will be ASTM B633 Clear Zinc PlatingMOTOR Gear Head GHHP operator with manual hand chain Pneumatic Miller edge will be located on the bottom door panel with photo eye mounted on bottom inside of opening for safety. Hand chain will be mounted to the side of the opener for manual operation in emergency power outage situations. Interior three button control station will be mounted below motor or other convenient location and height determined by customer. All conduit, wires and electrical connections of opener and accessories will be customer responsibility and are to be made by a qualified electrician. Power options: 208/230/460 3-phase or 575V 3-phaseEMBEDMENTS Embedments, if needed, will be manufactured and shipped to the customer before structure walls are created. Bullet Proof Doorz will supply a detailed drawing of embedment locations to be poured in place during wall creation. If building is an existing structure, then a double steel plate system can be fastened as an alternate solution to embedments. (Poured in place embedments is manufacturers preference and dramatically reduces installation time)INSTALLATION Our doors are installed by our certified service technicians. Each component is handled with care from start to finish to ensure proper fit and a problem free experience with use.BALLISTIC DOORS *U.L., N.I.J., and Blast capabilities certified and documented by an independent testing facility.BLAST DOORS Our blast doors are designed with your specific needs in mind. After you provide your required specifications (including, but not limited to, the standoff distance, charge weight and level of protection), our blast engineers will get to work designing you the door your project demands.Our ballistic doors are designed to meet the level of protection you need. See charts below. |
|

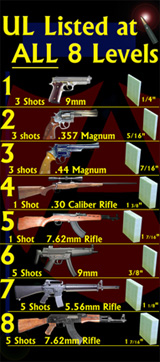

| LEVEL U.L. 752 |
AMMUNITION | WEIGHT (GRAINS) |
WEIGHT (GRAMS) |
MIN FT/SEC |
MAX FT/SEC |
SHOTS |
|---|---|---|---|---|---|---|
| 1 | 9mm Full Metal Copper Jacket with Lead Core |
124 | 8 | 1175 | 1293 | 3 |
| 2 | .357 Magnum Jacketed Lead Soft Point |
158 | 10.2 | 1250 | 1375 | 3 |
| 3 | .44 Magnum Lead Semi-Wadcutter Gas Checked |
240 | 15.6 | 1350 | 1485 | 3 |
| 4 | .39 Caliber Rifle Lead Cores Soft Point (.30-06 Caliber) |
180 | 11.7 | 2540 | 2794 | 1 |
| 5 | 7.62mm Rifle Lead Core Full Metal Copper Jacket Military Ball (.308 Caliber) |
150 | 9.7 | 2750 | 3025 | 1 |
| 6 | 9mm Full Metal Copper Jacket with Lead Core |
124 | 8 | 1400 | 1540 | 5 |
| 7 | 5.56mm Rifle Full Metal Copper Jacket with Lead Core (.223 Caliber) |
55 | 3.56 | 3080 | 3383 | 5 |
| 8 | 7.62mm Rifle Lead Core Full Metal Copper Jacket Military Ball (.308 Caliber) |
150 | 9.7 | 2750 | 3025 | 5 |
| 9 | .30-06 Armor Piercing | 166 | 10.8 | 868 +/- 15 | 2850 +/- 50 | 1 |
| Shot Gun Slug | 12-Gauge Rifled Lead Slug | 1 O.Z. | 28.3 | 1585 | 1744 | 3 |
|
| LEVEL NIJ |
AMMUNITION | WEIGHT (GRAINS) |
WEIGHT (GRAMS) |
MIN FT/SEC |
MAX FT/SEC |
SHOTS |
|---|---|---|---|---|---|---|
| II | .357 Magnum Jacketed Lead Soft Point | 158 | 10.2 | 425 +/- 15 | 1395 +/- 50 | 5 |
| III | 7.62mm Full Metal Jacket (.308 Winchester) | 150 | 9.7 | 838 +/- 15 | 2750 +/- 50 | 5 |
| IV | .30-06 Armor Piercing | 166 | 10.8 | 868 +/- 15 | 2850 +/- 50 | 1 |
|
|
